Hyperbaric oxygen therapy
Manufacturer of hyperbaric chambers for several decades, COMEX designs, manufactures, and installs hyperbaric medical devices and hyperbaric oxygen therapy chambers.
Our equipment is present in a large number of private and public healthcare units. COMEX has commissioned more than 230 hyperbaric installations worldwide.
Hyperbaric Chambers COMEX New Generation
Our new generation of multiplace Hyperbaric Oxygen Therapy (HBOT) systems features a sleek, cutting-edge design and offers significant development potential due to its innovative concept.
The development of these installations was carried out in accordance with the EN14931 standard for multiplace hyperbaric chambers for therapeutic use, as well as the NF EN 16081 standard: specific requirements for fire suppression systems in hyperbaric chambers.
The design of these systems also benefited from the integration of needs expressed by technical and medical personnel working in hyperbaric centers.
Comex has a perfect mastery of public markets.
Find our products in the UNIHA catalog.
New hospital hyperbaric chambers, what are the advantages?
- ✓ Multiple features and storage solutions with a modern, durable design and surfaces designed for easy and quick daily decontamination.
- ✓ A medication airlock with autoclave closure ensuring absolute safety and quick usage.
- ✓ Removable ergonomic chair modules with personalized adjustments on a wheeled chassis.
- ✓ High-power ambient and focused LED lighting systems controlled from the console.
- ✓ An antistatic, non-slip, and decontaminable flooring similar to that used in operating rooms.
- ✓ The reliability of industrial-quality equipment.
- ✓ The performance and unlimited upgrade potential of the control system, utilizing an industrial architecture with a programmable logic controller and supervision.
- ✓ The ergonomics and ease of use of the HMI with automatic management of treatment tables, real-time recording and display of all parameters, and automatic management of all safety features.
Hospital Hyperbaric Chamber Offer
Our hospital hyperbaric chambers are divided into three categories based on their shape: Cylindrical, Cubic, and Hybrid.
Each of these solutions has been developed to provide every hospital center with the most suitable hyperbaric installation for their needs and constraints.
Our hospital units can consist of one, two, or three chambers.
HBOT Installation
All our installations come with a 2-year warranty and include preventive and corrective maintenance services tailored to our clients’ needs.
General Description
Each of our HBOT installations is equipped with the following elements:
- ✓ Hyperbaric chamber consisting of a treatment room and an airlock

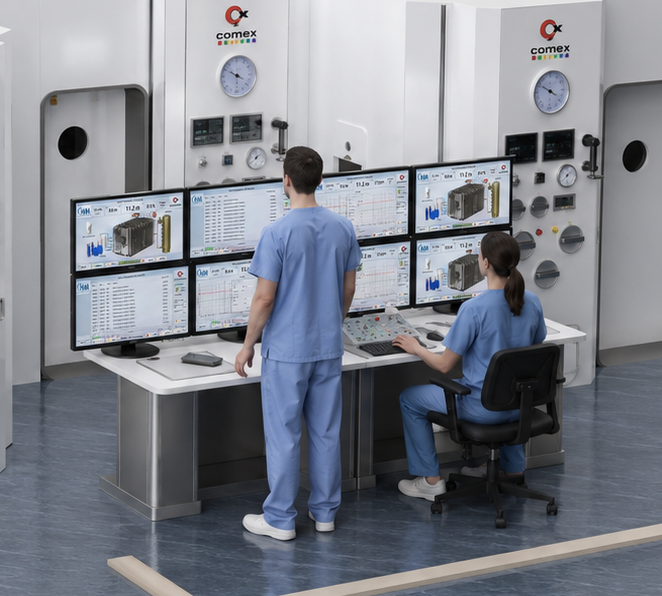

- ✓ Control console
Interior Features
Interior Features
The interior features are designed to ensure the comfort and safety of patients, as well as to include the necessary measurement, control, and monitoring equipment for effective care operations:
Comfort
Care and Control
Safety
The medical devices and hyperbaric accessories complement this setup according to the needs of our clients.
Cylindrical Chambers Cx2
This range represents the classic shape of hyperbaric chambers. It is the most efficient in meeting budget and mass constraints.
This range offers chambers with diameters of 2,300 mm and 2,500 mm, accommodating up to 8 patients for the former and up to 16 patients for the latter.
Our cylindrical chambers feature a rectangular hinged door with autoclave closure, flush with the floor for direct access by stretcher trolleys.
General Characteristics Cx2300
| Chamber Capacity: | 4, 6, or 8 patients |
| Airlock Capacity: | 1 to 2 people |
| Maximum Service Pressure: | 3,5 bars (4,5 ATA) |
| Maximum Operating Pressure: | 3 bars (4 ATA) |
| Internal Dimensions of the Chamber: | |
| Internal Dimensions of the Airlock: | Height: 2 m / Width: 1.8 m / Length: 1.5 m |
| Overall Height | 2,65 m |
| Overall Width: | 2,4 m |
| Overall Length: : | starting from 4.5 m |
| Total Weight: | starting from 12 tons |
General Characteristics Cx2500
| Chamber Capacity: | 8 to 16 patients |
| Airlock Capacity: | 2 to 3 people |
| Maximum Service Pressure: | 3,5 bars (4,5 ATA) |
| Maximum Operating Pressure: | 3 bars (4 ATA) |
| Internal Dimensions of the Chamber: | Height: 2 m / Width: 1.8 m / Length: starting from 5 m |
| Internal Dimensions of the Airlock: | Height: 2 m / Width: 1.8 m / Length: starting from 1.5 m/td> |
| Overall Height: | 2,75 m |
| Overall Width: | 2,6 m |
| Overall Length: | starting from 7.2 m |
| Total Weight:l | starting from 15 tons |
Cubical Chambers Cx2CUB
This range represents an innovative shape offering a spacious and reassuring interior, enhancing the comfort of both patients and healthcare staff.
The cubical chamber, which has seen significant success with our clients, does come with its own constraints, such as a greater floor load compared to a cylindrical installation of similar capacity. It also requires a larger floor area and higher ceiling to accommodate the installation.
This range offers chambers with a height of 3,000 mm and a width of 3,000 mm, equipped with a rectangular sliding door, and accommodating 8 to 16 patients.
General Characteristics Cx2CUB
| Chamber Capacity: | 8 to 16 patients |
| Airlock Capacity: | 2 to 3 people |
| Maximum Service Pressure: | 3.5 bars (4.5 ATA) |
| Maximum Operating Pressure: | 3 bars(4 ATA) |
| Internal Dimensions of the Chamber: | Height: 2.6 m / Width: 2.8 m / Length: starting from 4.7 m |
| Internal Dimensions of the Airlock: | 2.6 m / Width: 2.8 m / Length: 1.6 m |
| Overall Height: | 3,2 m |
| Overall Width: | 3,2 m |
| Overall Length: | starting from 7.3 m |
| starting from 25 tons |
Hybrid Chambers Cx2HYB
The hybrid shape offers a synergy between cubical and cylindrical chambers, developed specifically by COMEX to combine the interior comfort of the cubical range with a more moderate mass and budget.
This range features chambers with a height of 3,000 mm and a width of 3,000 mm at the base. The hybrid chambers are equipped with a rectangular sliding door and can accommodate 6 to 16 patients.
General Characteristics Cx2HYB
| Chamber Capacity: | 8 to 16 patients | Height | 3.000 mm |
| Width | 3.000 mm |
| Airlock Capacity: | 2 to 3 people |
| Maximum Service Pressure: | 3.5 bars (4.5 ATA) |
| Maximum Operating Pressure: | 3 bars(4 ATA) |
| Internal Dimensions of the Chamber: | Height: 2.6 m / Width: 2.8 m / Length: starting from 4.7 m |
| Internal Dimensions of the Airlock: | Height: 2.6 m / Width: 2.8 |
In terms of certifications, COMEX relies on a highly efficient quality management system, certified ISO 13485 for its medical devices and ISO 9001 for its other products.
Why Choose COMEX Hyperbaric Chambers?
✓ Innovative Products
We offer next-generation hyperbaric installations with refined and cutting-edge design, providing significant potential for future developments due to their innovative concept.
They embody COMEX’s expertise in safety, patient comfort, and staff comfort.
Safety and Reliability
- ✓ Installation compliant with the harmonized standards related to Directive 93/42/EEC
- ✓ Fire protection system compliant with the requirements of the NF EN 16081 standard
- ✓ Monitoring of the oxygen concentration in the medical fluid distributed to patients
- ✓
Medical-grade air production and storage center - ✓ Industrial-grade IT architecture
- ✓
Monitoring with HD wide-angle video surveillance cameras
Staff Comfort
- ✓ Control panel meeting ergonomic standards
- ✓ Optimized monitoring with supervision software
- ✓ Automatic management of treatment sessions (multiple modes)
- ✓ Communication system meeting the constraints of a hyperbaric installation
- ✓ Multiple storage spaces and rails for the integration of medical equipment
- ✓ High-brightness LED lighting for safe medical procedures
Patient Comfort
- ✓ Ergonomic, decontaminable, and customizable chairs
- ✓ Soothing and intense LED lighting system
- ✓
Entertainment multimedia system - ✓ Streamlined environment designed for serenity and well-being
- ✓ Lightweight autoclave masks with valve or regulator balloon
- ✓ Air conditioning and heating system
✓ A Complete Offer
To provide a turnkey installation, COMEX also supplies, in addition to hyperbaric chambers:
- ✓ All air production and storage equipment, sized and positioned according to the available technical room’s characteristics.
- ✓
A range of hyperbaric-compatible medical devices such as ventilators, monitors, syringe pumps, etc. - ✓ A range of hyperbaric accessories for care, safety, and comfort.
COMEX offers its clients a range of expert services for:
- ✓The study of the implantation of the oxygen therapy chamber, the organization of the hyperbaric center’s facilities, and the patient pathway.
- ✓
Maintenance and Training Services - ✓ Assistance in Hyperbaric Physiology and Medicine
Training and Maintenance
Training programs for medical staff and technical support options, highlighting COMEX’s commitment to a long-term partnership.
After-Sales Service
24/7
French / English
The COMEX product range is now available in the UniHA catalog..
The Union of Hospitals for Purchasing “UniHa” is a cooperative of French public hospital buyers.
In the catalog, you will find all our single-chamber or multi-chamber hospital installations, air production systems, and associated maintenance services.
